ACT Heavy Duty Race Sprung 6 Pad Clutch Kit with Flywheel Subaru WRX 2006+

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit with Flywheel Subaru WRX 2006+

Regular price $1,112.00 USD
Regular price Sale price $1,112.00 USD
Sale Sold out

Fitment Information:

2006-2023 Subaru WRX

2005-2012 Subaru Legacy GT / Legacy GT Spec B

2005-2009 Subaru Outback XT

2006-2008 Subaru Forester XT

Note: Conversion Kit - replaces original 230mm clutch. Must use ACT Flywheel (included in kit). Subaru has incorporated 240mm clutch components into production during mid-2018MY production starting with VIN J806877. ACT clutch kits and flywheels are not compatible with the revised OEM components.

Features:


ACT's SB11-HDG6 kit features a 6-pad sprung race disc paired with their ever popular Heavy Duty pressure plate. What does this mean for you? Well that means you will have light to moderate pedal effort, an aggressive engagement and the ability to handle up to 574ft/lbs of torque. This clutch and flywheel kit is best suited for high horsepower street or race use Subarus.

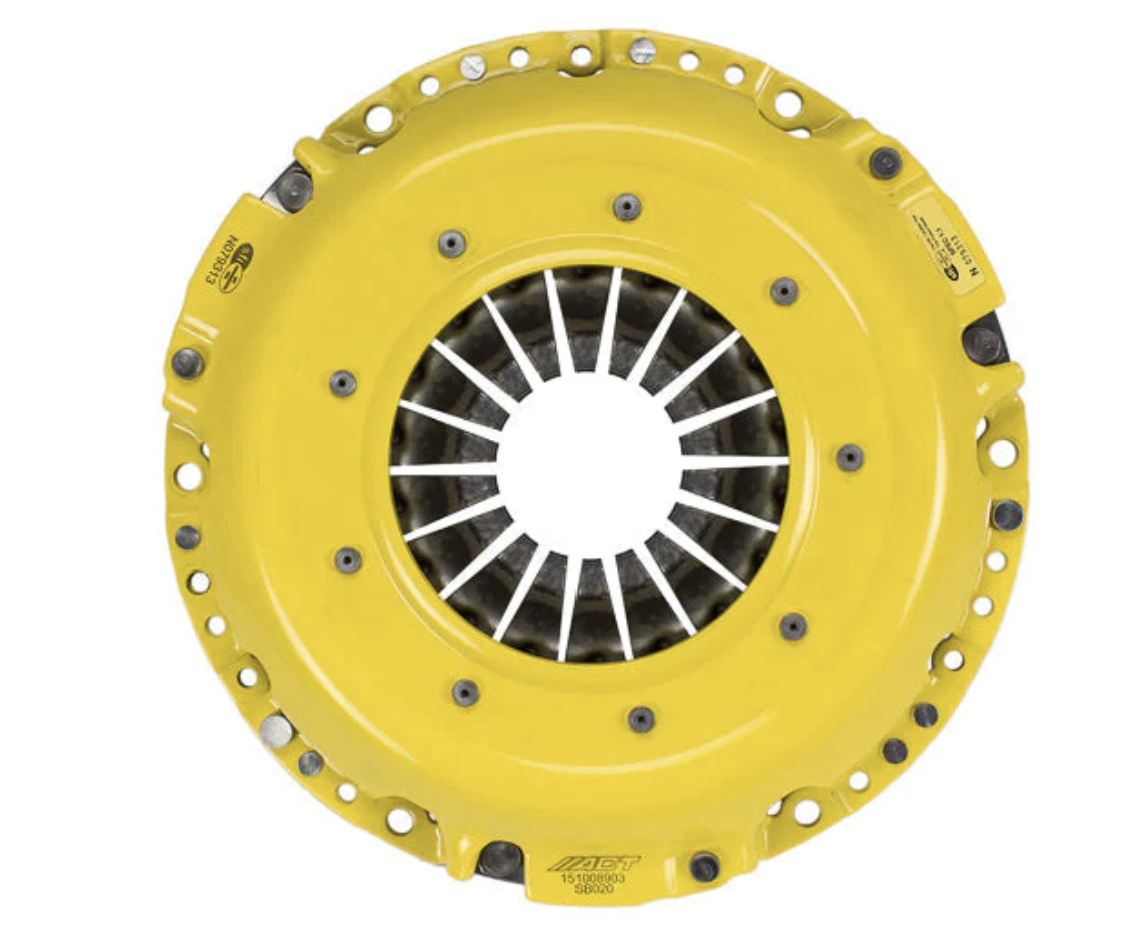

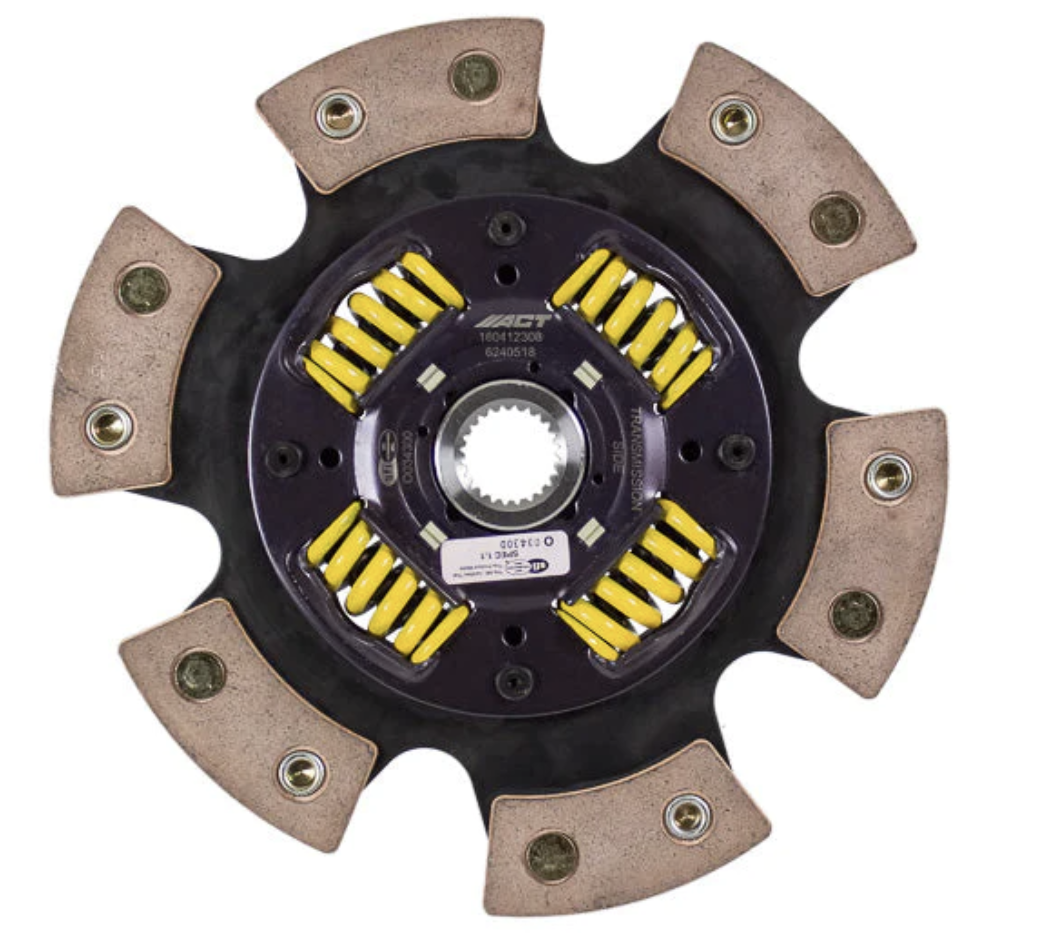

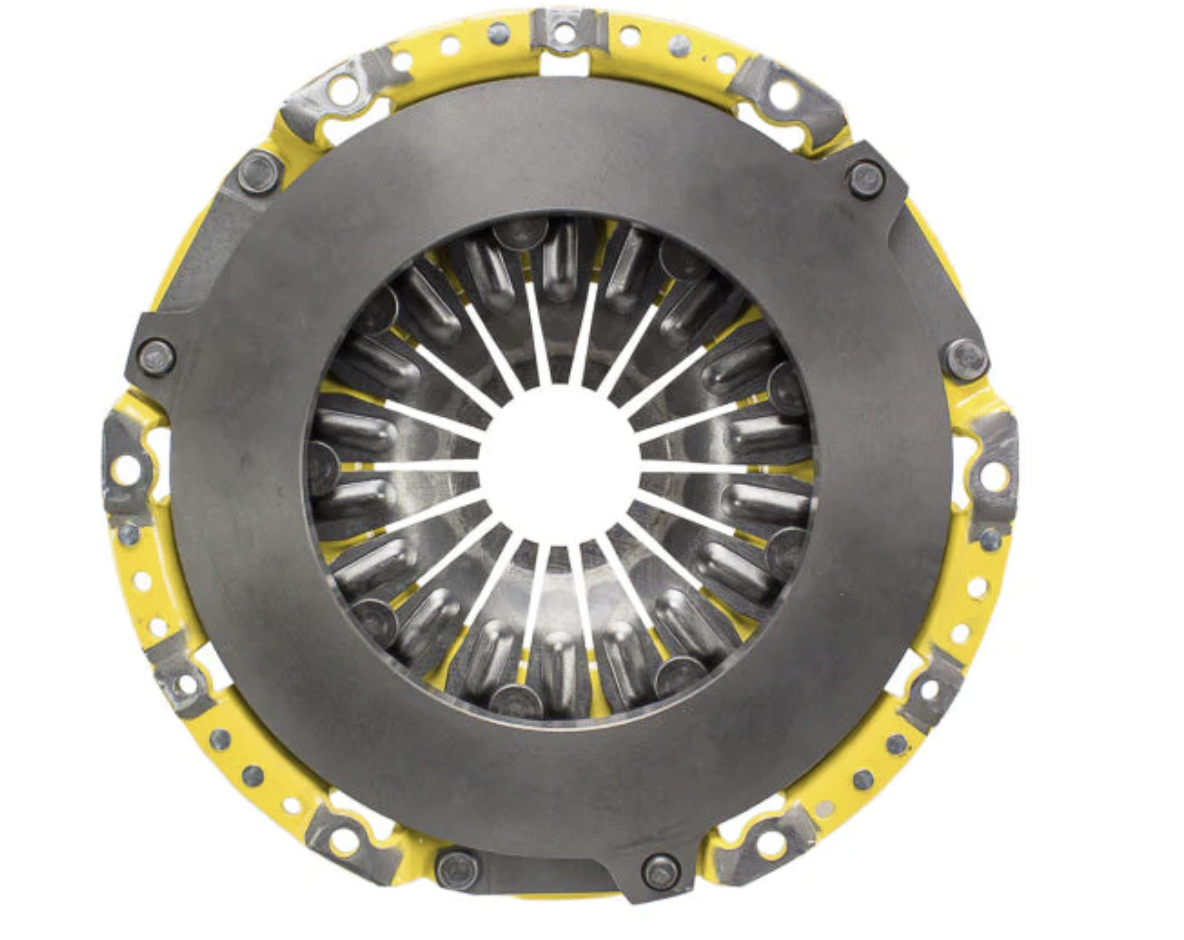

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
  • Feel - Light to moderate pedal effort, aggressive engagement, increased gear rattle
  • Recommended Use - Recommended for high horsepower street or race use
  • Torque Capacity (ft/lbs.): 574
  • ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

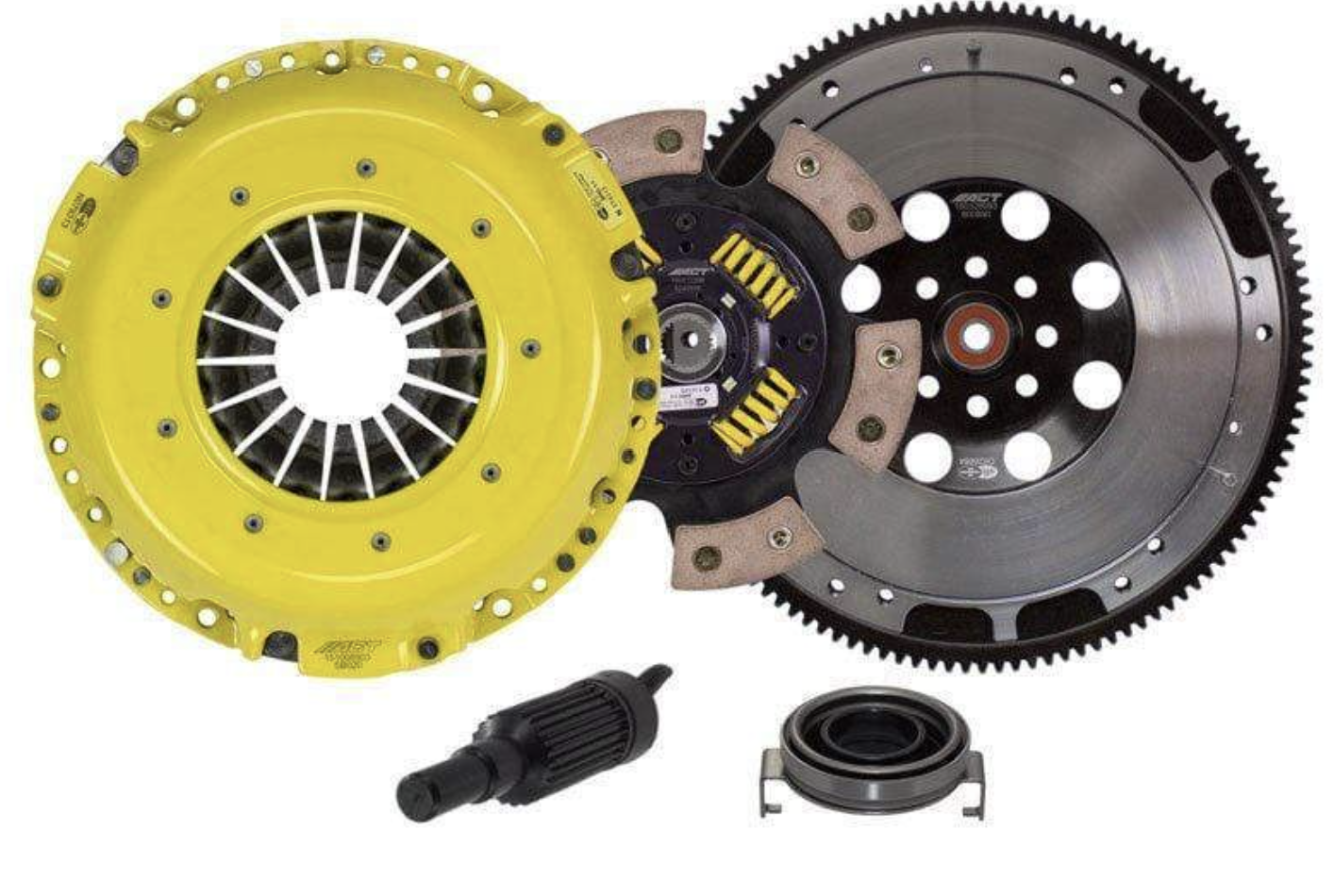

What's Included:

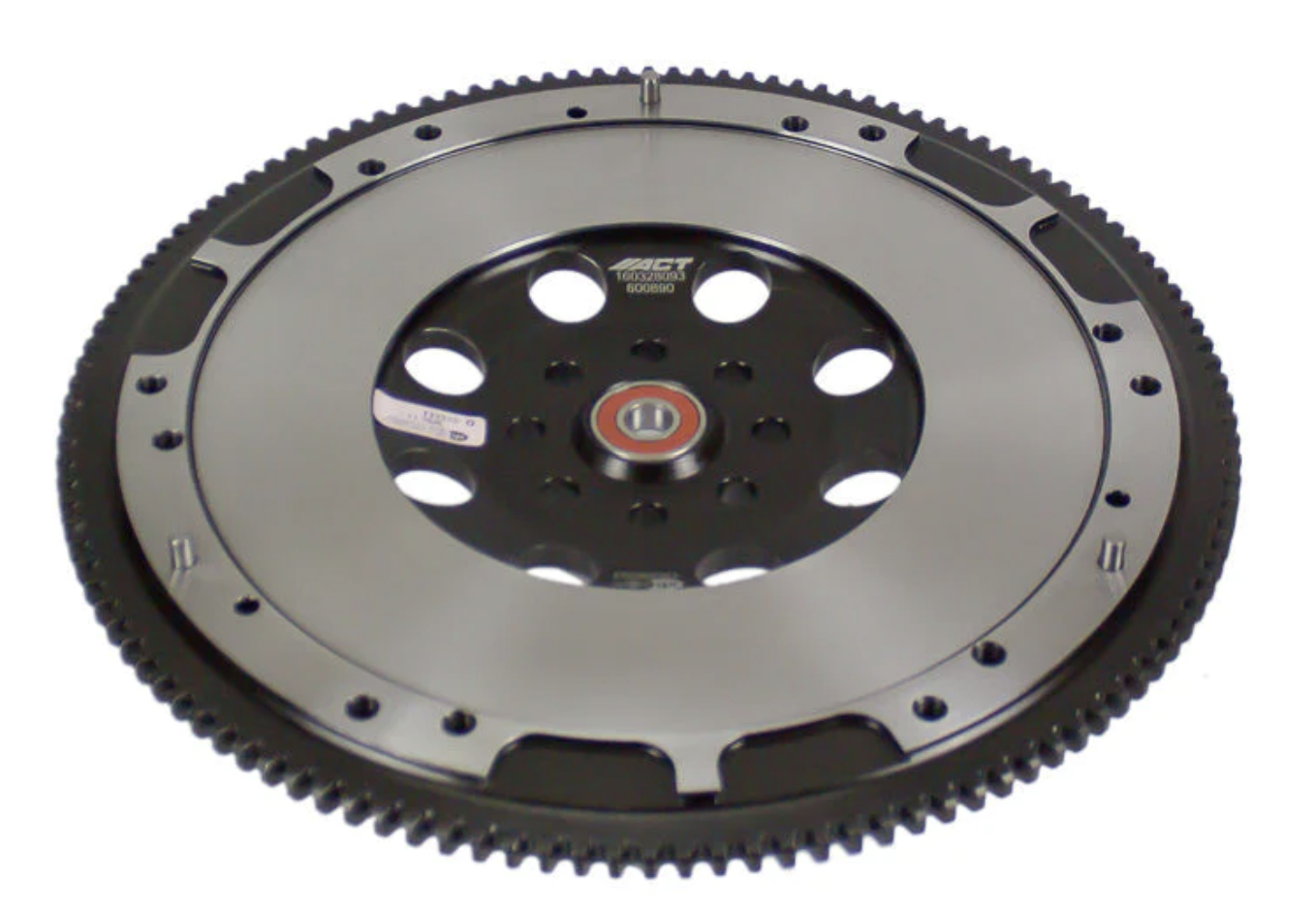

  • Streetlite Flywheel
  • 6 Pad Sprung Race Disc
  • Heavy Duty Pressure Plate
  • Alignment Tool
  • Pilot Bearing

Off-Road Use Policy

By purchasing this product, you are acknowledging the use of this service is explicity for Competition/Off - Road Racing ONLY. It is the responsbility of the buyer to remain compliant with local, state & federal laws regarding EPA restrictions.
