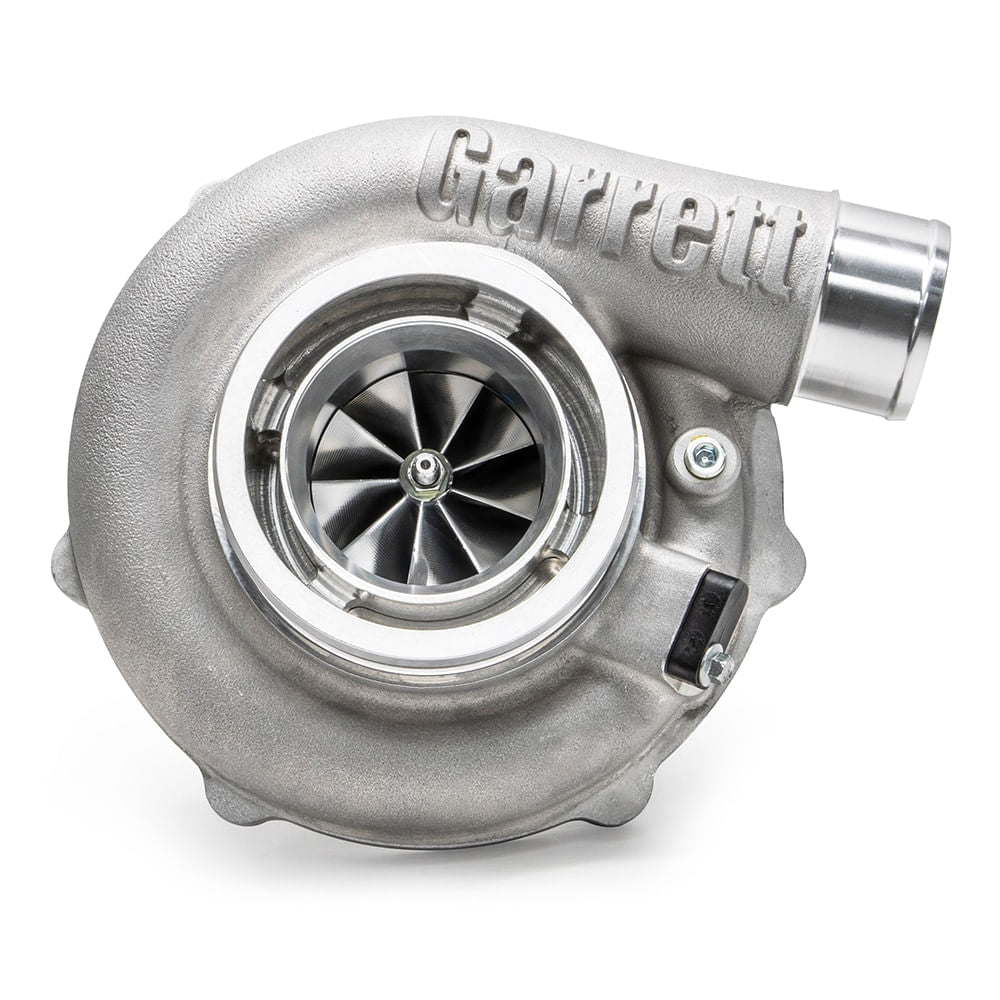

Garrett Turbo G30-770 Standard Rotation w/ G30 Turbine Housing Kit .83 A/R V-Band In / Out
Garrett Turbo G30-770 Standard Rotation w/ G30 Turbine Housing Kit .83 A/R V-Band In / Out
Regular price
$2,762.62 USD
Regular price
Sale price
$2,762.62 USD
Unit price
/
per
Lease for as low as $/week.
Get Approved
Couldn't load pickup availability
Product Specifications
Engine Characteristics
Min HP
475
Max HP
770
Min Displacement (L)
2.0
Max Displacement (L)
3.5
Important Product Information
Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein
Compressor Wheel Specs
Compressor Exducer (mm)
71
Compressor Wheel Mat
Forged Fully Machined
Compressor A/R
0.72
Turbine Wheel Specs
Turbine Inducer (mm)
60
Turbine Exducer (mm)
55
Turbine Trim
84
Turbine Wheel Mat
Mar-M
Turbochargers
Product Line
G-Series
Frame Size
30
Rotation
Standard
Cooling
Oil & Water Cooled
Wastegate
External
Bearing
Ceramic Dual Ball Bearing
Off-Road Use Policy
Off-Road Use Policy
By purchasing this product, you are acknowledging the use of this service is explicity for Competition/Off - Road Racing ONLY. It is the responsbility of the buyer to remain compliant with local, state & federal laws regarding EPA restrictions.
