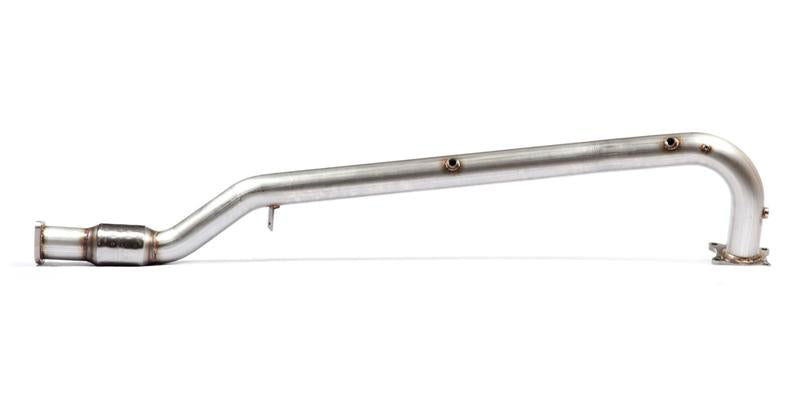

GrimmSpeed 2015-2021 Subaru WRX Catted J Pipe

With the 2015 J-Pipe, the devil is truly in the details and the product development team here at GrimmSpeed has taken the time necessary to knock each of those details out of the park. As a result, what you see here is a meticulously engineered J-Pipe with an innovative flange design, single piece construction, excellent ground clearance and fitment with superb quality and craftsmanship.

Performance of the J-Pipe was verified on our 2015 WRX using the following method. Our tuned baseline run is the same run that we used in showing the boost control performance of the GrimmSpeed 3-Port Solenoid. We then installed the J-Pipe and retuned the car, using the exact same tuning methodology to ensure consistency. This ensured a real apples-to-apples comparison between the stock J-Pipe and the GrimmSpeed unit. The results showed a gain of 26.7whp (14.1%) and 19.8wtq (9.0%) and are displayed in the chart to the left. The percentage gains should be the focus here, as this particular dyno reads very low (stock baseline was 171). From a completely stock vehicle, users can expect a gain of around 45whp (27%) and 70wtq (41%) with the installation of the GrimmSpeed J-Pipe and custom tuning. The chart on the right shows this comparison.

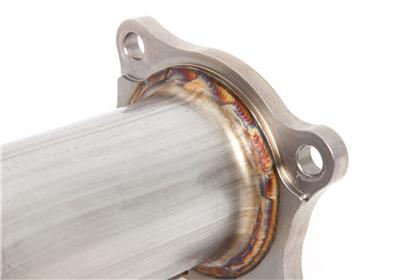

Our engineers began by 3D scanning the OEM J-Pipe and vehicle underbody using our in-house FARO Arm. That data was used in CAD to design a pipe that fits perfectly within the tight underbody packaging on a 2015 WRX without sacrificing ground clearance. The 2015 WRX uses a series of OEM brackets to support the weight of the turbo and J-pipe, the most important of which bolts to the turbine outlet flange. Our engineers insisted on using thick 1/2" stainless steel flanges, but also knew that without a clever design, the very important OEM brackets would no longer line up. The GrimmSpeed flange design uses a CNC machined pocket that the OEM bracket sits in during installation, allowing the use of 1/2" thick flanges as well as the factory turbo support bracket! Finally, they worked tirelessly to design and manufacture a J-Pipe that could be bent from a single piece of tubing. This allows for more efficient manufacturing, less potential failure points and a product that fits perfectly each and every time.

Applications

• 2015-2021 Subaru WRX Manual
