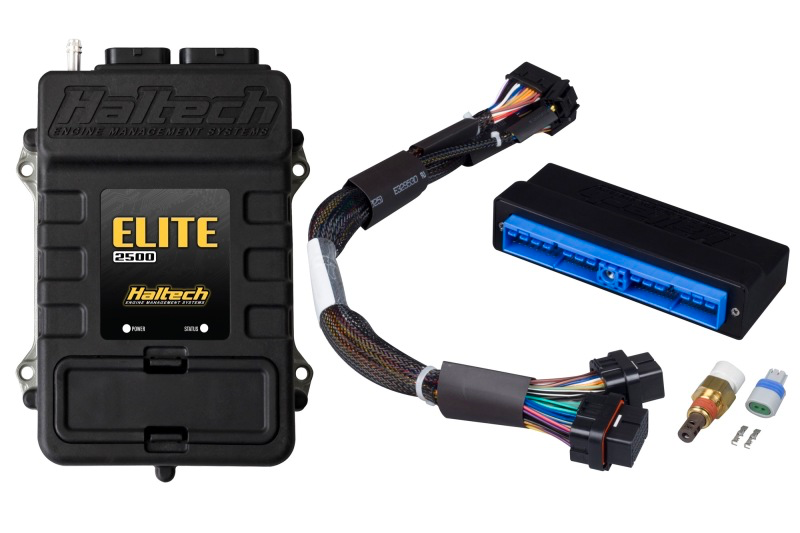

Haltech Elite 2500 + Nissan Skyline R32/33/R34 Plug'n'Play Adaptor Harness Kit

Name: Haltech Elite 2500 + Nissan Skyline R32/33/R34 Plug'n'Play Adaptor Harness Kit
Brand: Haltech
SKU: HT-151357
Price: 2399.0 USD
Availability: InStock

$2,399.00 USD

Sale Sold out

{"id":8336666820897,"title":"Haltech Elite 2500 + Nissan Skyline R32\/33\/R34 Plug'n'Play Adaptor Harness Kit","handle":"haltech-elite-2500-nissan-skyline-r32-33-r34-plugnplay-adaptor-harness-kit","description":"\u003cmeta charset=\"UTF-8\"\u003e\n\u003cdiv\u003eADAPTOR OVERVIEW\u003c\/div\u003e\n\u003cdiv\u003eThis adaptor plugs directly into your Haltech Elite ECU and has a set of factory connectors on the other side which plug straight into the factory harness. A quick and easy plug'n'play upgrade solution.\u003c\/div\u003e\n\u003cul\u003e\n\u003cli\u003eThis harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle.\u003c\/li\u003e\n\u003cli\u003eFully programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.Â \u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cul\u003e\n\u003cli\u003eThe quick start guide will walk you through installation of the Haltech Plug'n'Play adaptor into your vehicle.\u003c\/li\u003e\n\u003cli\u003eWhen purchased as a kit with a Haltech ECU, this product is accompanied by the full ECU manual and Software located on the CD or USB key.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv\u003e\u003c\/div\u003e\n\u003cdiv\u003eECU OVERVIEW\u003c\/div\u003e\n\u003cdiv\u003eElite 2500 is a two-connector, stand-alone ECU ideal for popular late model performance and racing applications. Recommended for 4, 6, 8 cylinder, Drive-By-Wire (DBW) or 2, 3, 4 rotor engines, EFI conversions, engines with multiple variable camshafts. Featuring a robust environmentally sealed water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, the Elite 2500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 2500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide.\u003c\/div\u003e\n\u003cul\u003e\n\u003cli\u003eSupports 1 to 12 Cylinder engines\u003c\/li\u003e\n\u003cli\u003e2 to 4 Rotor engines\u003c\/li\u003e\n\u003cli\u003eNormally aspirated or forced induction\u003c\/li\u003e\n\u003cli\u003eLoad sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)\u003c\/li\u003e\n\u003cli\u003eStaged, Sequential, semi sequential, batch or multipoint injection patterns\u003c\/li\u003e\n\u003cli\u003eDistributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems\u003c\/li\u003e\n\u003cli\u003eConnect to a wide range of display dashes and expansion devices via CAN.\u003c\/li\u003e\n\u003cli\u003eWaterproof Case (With Pocket Cover Fitted)\u003c\/li\u003e\n\u003cli\u003e8 x Fuel Injection Outputs\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cul\u003e\n\u003cli\u003e8 x Ignition Outputs\u003c\/li\u003e\n\u003cli\u003e12 x Digital Outputs\u003c\/li\u003e\n\u003cli\u003e10 x Analogue Voltage Inputs\u003c\/li\u003e\n\u003cli\u003e4 x Synchronised Pulsed Inputs\u003c\/li\u003e\n\u003cli\u003e4 x Dedicated inputs (Dual Knock, ignition Switch \u0026amp; onboard MAP Sensor)\u003c\/li\u003e\n\u003cli\u003e2 x Dedicated Engine Position Inputs with extensive trigger type support\u003c\/li\u003e\n\u003cli\u003eUp to 45 channels of Input \u0026amp; Output (I\/O) expansion (via CAN)\u003c\/li\u003e\n\u003cli\u003eUSB Laptop communication (Windows)\u003c\/li\u003e\n\u003cli\u003eNow using the new NSP Calibration Software\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2023-06-18T12:24:53-05:00","created_at":"2023-06-18T12:24:53-05:00","vendor":"Haltech","type":"","tags":["Nissan Skyline","Nissan Skyline R32","Nissan Skyline R33","Nissan Skyline R34"],"price":239900,"price_min":239900,"price_max":239900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45472926269729,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"HT-151357","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Haltech Elite 2500 + Nissan Skyline R32\/33\/R34 Plug'n'Play Adaptor Harness Kit","public_title":null,"options":["Default Title"],"price":239900,"weight":6804,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/image_c75f46f7-6c0e-43c7-9b9d-4e2c2631f361.png?v=1687109097"],"featured_image":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/image_c75f46f7-6c0e-43c7-9b9d-4e2c2631f361.png?v=1687109097","options":["Title"],"media":[{"alt":null,"id":34151569916193,"position":1,"preview_image":{"aspect_ratio":1.501,"height":533,"width":800,"src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/image_c75f46f7-6c0e-43c7-9b9d-4e2c2631f361.png?v=1687109097"},"aspect_ratio":1.501,"height":533,"media_type":"image","src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/image_c75f46f7-6c0e-43c7-9b9d-4e2c2631f361.png?v=1687109097","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cmeta charset=\"UTF-8\"\u003e\n\u003cdiv\u003eADAPTOR OVERVIEW\u003c\/div\u003e\n\u003cdiv\u003eThis adaptor plugs directly into your Haltech Elite ECU and has a set of factory connectors on the other side which plug straight into the factory harness. A quick and easy plug'n'play upgrade solution.\u003c\/div\u003e\n\u003cul\u003e\n\u003cli\u003eThis harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle.\u003c\/li\u003e\n\u003cli\u003eFully programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.Â \u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cul\u003e\n\u003cli\u003eThe quick start guide will walk you through installation of the Haltech Plug'n'Play adaptor into your vehicle.\u003c\/li\u003e\n\u003cli\u003eWhen purchased as a kit with a Haltech ECU, this product is accompanied by the full ECU manual and Software located on the CD or USB key.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv\u003e\u003c\/div\u003e\n\u003cdiv\u003eECU OVERVIEW\u003c\/div\u003e\n\u003cdiv\u003eElite 2500 is a two-connector, stand-alone ECU ideal for popular late model performance and racing applications. Recommended for 4, 6, 8 cylinder, Drive-By-Wire (DBW) or 2, 3, 4 rotor engines, EFI conversions, engines with multiple variable camshafts. Featuring a robust environmentally sealed water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, the Elite 2500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 2500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide.\u003c\/div\u003e\n\u003cul\u003e\n\u003cli\u003eSupports 1 to 12 Cylinder engines\u003c\/li\u003e\n\u003cli\u003e2 to 4 Rotor engines\u003c\/li\u003e\n\u003cli\u003eNormally aspirated or forced induction\u003c\/li\u003e\n\u003cli\u003eLoad sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)\u003c\/li\u003e\n\u003cli\u003eStaged, Sequential, semi sequential, batch or multipoint injection patterns\u003c\/li\u003e\n\u003cli\u003eDistributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems\u003c\/li\u003e\n\u003cli\u003eConnect to a wide range of display dashes and expansion devices via CAN.\u003c\/li\u003e\n\u003cli\u003eWaterproof Case (With Pocket Cover Fitted)\u003c\/li\u003e\n\u003cli\u003e8 x Fuel Injection Outputs\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cul\u003e\n\u003cli\u003e8 x Ignition Outputs\u003c\/li\u003e\n\u003cli\u003e12 x Digital Outputs\u003c\/li\u003e\n\u003cli\u003e10 x Analogue Voltage Inputs\u003c\/li\u003e\n\u003cli\u003e4 x Synchronised Pulsed Inputs\u003c\/li\u003e\n\u003cli\u003e4 x Dedicated inputs (Dual Knock, ignition Switch \u0026amp; onboard MAP Sensor)\u003c\/li\u003e\n\u003cli\u003e2 x Dedicated Engine Position Inputs with extensive trigger type support\u003c\/li\u003e\n\u003cli\u003eUp to 45 channels of Input \u0026amp; Output (I\/O) expansion (via CAN)\u003c\/li\u003e\n\u003cli\u003eUSB Laptop communication (Windows)\u003c\/li\u003e\n\u003cli\u003eNow using the new NSP Calibration Software\u003c\/li\u003e\n\u003c\/ul\u003e"}

Product variants

Quantity

ADAPTOR OVERVIEW

This adaptor plugs directly into your Haltech Elite ECU and has a set of factory connectors on the other side which plug straight into the factory harness. A quick and easy plug'n'play upgrade solution.

This harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle.
Fully programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.Â

The quick start guide will walk you through installation of the Haltech Plug'n'Play adaptor into your vehicle.
When purchased as a kit with a Haltech ECU, this product is accompanied by the full ECU manual and Software located on the CD or USB key.

ECU OVERVIEW

Elite 2500 is a two-connector, stand-alone ECU ideal for popular late model performance and racing applications. Recommended for 4, 6, 8 cylinder, Drive-By-Wire (DBW) or 2, 3, 4 rotor engines, EFI conversions, engines with multiple variable camshafts. Featuring a robust environmentally sealed water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, the Elite 2500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 2500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide.

Supports 1 to 12 Cylinder engines
2 to 4 Rotor engines
Normally aspirated or forced induction
Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
Staged, Sequential, semi sequential, batch or multipoint injection patterns
Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
Connect to a wide range of display dashes and expansion devices via CAN.
Waterproof Case (With Pocket Cover Fitted)
8 x Fuel Injection Outputs

8 x Ignition Outputs
12 x Digital Outputs
10 x Analogue Voltage Inputs
4 x Synchronised Pulsed Inputs
4 x Dedicated inputs (Dual Knock, ignition Switch & onboard MAP Sensor)
2 x Dedicated Engine Position Inputs with extensive trigger type support
Up to 45 channels of Input & Output (I/O) expansion (via CAN)
USB Laptop communication (Windows)
Now using the new NSP Calibration Software

Off-Road Use Policy

By purchasing this product, you are acknowledging the use of this service is explicity for Competition/Off - Road Racing ONLY. It is the responsbility of the buyer to remain compliant with local, state & federal laws regarding EPA restrictions.
