PRL High Volume Intake System 2017-2021 Honda Civic Type R

Name: PRL High Volume Intake System 2017-2021 Honda Civic Type R
Brand: PRL
SKU: PRL-HCR-INT-HVI-A
Price: 399.99 USD
Availability: InStock

$399.99 USD

Sale Sold out

{"id":8099523264801,"title":"PRL High Volume Intake System 2017-2021 Honda Civic Type R","handle":"prl-high-volume-intake-system-2017-honda-civic-type-r","description":"\u003cp\u003e\u003cspan data-mce-fragment=\"1\"\u003eFits all 2017-2021 Honda Civic Type-R FK8\u003c\/span\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eFits all variant models including RHD, International Models, Etc.\u003c\/span\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eFits Factory Turbocharger Inlet Pipe ONLY\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv\u003e\n\u003ch3\u003eImportant Notes:\u003c\/h3\u003e\n\u003cul\u003e\n\u003cli\u003eNO ECU CALIBRATION REQUIRED FOR STANDARD BORE MAF HOUSING\u003c\/li\u003e\n\u003cli\u003eBIG BORE MAF-SPECIFIC ECU CALIBRATION IS REQUIRED FOR BIG BORE MAF HOUSING\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch3\u003eTechnical Notes:\u003c\/h3\u003e\n\u003c\/div\u003e\nOur FK8 Civic Type-R High Volume Intake system utilizes a 6\" cone filter and billet 2-piece MAF housing with velocity stack(s) to allow maximum airflow while delivering proper fuel trims. The HDPE rotomolded air box utilizes the factory air duct and seal for optimal airflow and heat-soak reduction. Custom molded 4-ply silicone allows for all components to be safely attached without obstructing airflow.\u003c\/div\u003e\n\u003cdiv\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cdiv\u003e\u003cspan\u003eThe Big Bore MAF housing option is the largest MAF housing on the market, rated at 600+ horsepower, and offers a 47% increase in airflow volume over the factory MAF housing or Standard Bore HVI MAF. Our engineers were able to profile the volute and locate the MAF sensor flange in the optimal location to help keep fuel trims extremely stable. This will require a calibration\/MAF scaling and is more-so intended for customers looking to make over 450 horsepower.\u003c\/span\u003e\u003c\/div\u003e","published_at":"2023-02-09T22:43:20-06:00","created_at":"2023-02-09T22:43:21-06:00","vendor":"PRL","type":"Cold Air Intakes","tags":["Civic Type R (FK8)"],"price":39999,"price_min":39999,"price_max":39999,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44455764459809,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"PRL-HCR-INT-HVI-A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PRL High Volume Intake System 2017-2021 Honda Civic Type R","public_title":null,"options":["Default Title"],"price":39999,"weight":13608,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/outsiderperformanceusa.com\/cdn\/shop\/products\/PRLIntake2017_HondaCivicTypeR.webp?v=1676004203","\/\/outsiderperformanceusa.com\/cdn\/shop\/products\/PRLIntake2017_HondaCivicTypeR2.webp?v=1676004203","\/\/outsiderperformanceusa.com\/cdn\/shop\/products\/PRLIntake2017_HondaCivicTypeR3.webp?v=1676004203"],"featured_image":"\/\/outsiderperformanceusa.com\/cdn\/shop\/products\/PRLIntake2017_HondaCivicTypeR.webp?v=1676004203","options":["Title"],"media":[{"alt":null,"id":32939233149217,"position":1,"preview_image":{"aspect_ratio":1.333,"height":450,"width":600,"src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/products\/PRLIntake2017_HondaCivicTypeR.webp?v=1676004203"},"aspect_ratio":1.333,"height":450,"media_type":"image","src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/products\/PRLIntake2017_HondaCivicTypeR.webp?v=1676004203","width":600},{"alt":null,"id":32939233181985,"position":2,"preview_image":{"aspect_ratio":1.336,"height":449,"width":600,"src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/products\/PRLIntake2017_HondaCivicTypeR2.webp?v=1676004203"},"aspect_ratio":1.336,"height":449,"media_type":"image","src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/products\/PRLIntake2017_HondaCivicTypeR2.webp?v=1676004203","width":600},{"alt":null,"id":32939233214753,"position":3,"preview_image":{"aspect_ratio":1.333,"height":450,"width":600,"src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/products\/PRLIntake2017_HondaCivicTypeR3.webp?v=1676004203"},"aspect_ratio":1.333,"height":450,"media_type":"image","src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/products\/PRLIntake2017_HondaCivicTypeR3.webp?v=1676004203","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cspan data-mce-fragment=\"1\"\u003eFits all 2017-2021 Honda Civic Type-R FK8\u003c\/span\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eFits all variant models including RHD, International Models, Etc.\u003c\/span\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eFits Factory Turbocharger Inlet Pipe ONLY\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv\u003e\n\u003ch3\u003eImportant Notes:\u003c\/h3\u003e\n\u003cul\u003e\n\u003cli\u003eNO ECU CALIBRATION REQUIRED FOR STANDARD BORE MAF HOUSING\u003c\/li\u003e\n\u003cli\u003eBIG BORE MAF-SPECIFIC ECU CALIBRATION IS REQUIRED FOR BIG BORE MAF HOUSING\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch3\u003eTechnical Notes:\u003c\/h3\u003e\n\u003c\/div\u003e\nOur FK8 Civic Type-R High Volume Intake system utilizes a 6\" cone filter and billet 2-piece MAF housing with velocity stack(s) to allow maximum airflow while delivering proper fuel trims. The HDPE rotomolded air box utilizes the factory air duct and seal for optimal airflow and heat-soak reduction. Custom molded 4-ply silicone allows for all components to be safely attached without obstructing airflow.\u003c\/div\u003e\n\u003cdiv\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cdiv\u003e\u003cspan\u003eThe Big Bore MAF housing option is the largest MAF housing on the market, rated at 600+ horsepower, and offers a 47% increase in airflow volume over the factory MAF housing or Standard Bore HVI MAF. Our engineers were able to profile the volute and locate the MAF sensor flange in the optimal location to help keep fuel trims extremely stable. This will require a calibration\/MAF scaling and is more-so intended for customers looking to make over 450 horsepower.\u003c\/span\u003e\u003c\/div\u003e"}

Product variants

Quantity

Fits all 2017-2021 Honda Civic Type-R FK8
Fits all variant models including RHD, International Models, Etc.
Fits Factory Turbocharger Inlet Pipe ONLY

Important Notes:

NO ECU CALIBRATION REQUIRED FOR STANDARD BORE MAF HOUSING
BIG BORE MAF-SPECIFIC ECU CALIBRATION IS REQUIRED FOR BIG BORE MAF HOUSING

Technical Notes:

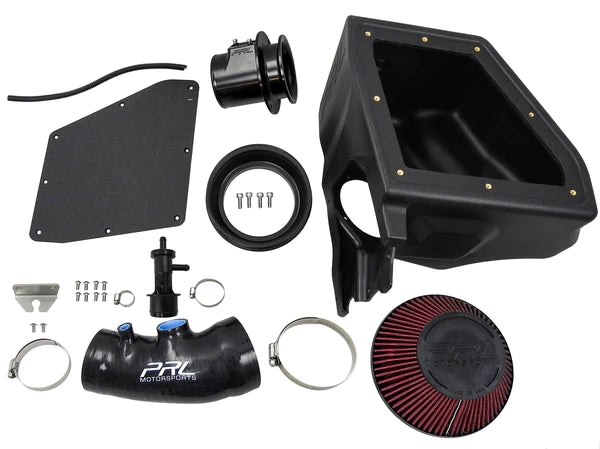

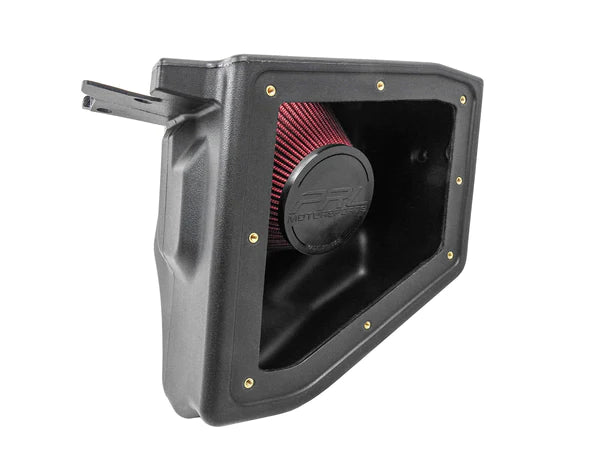

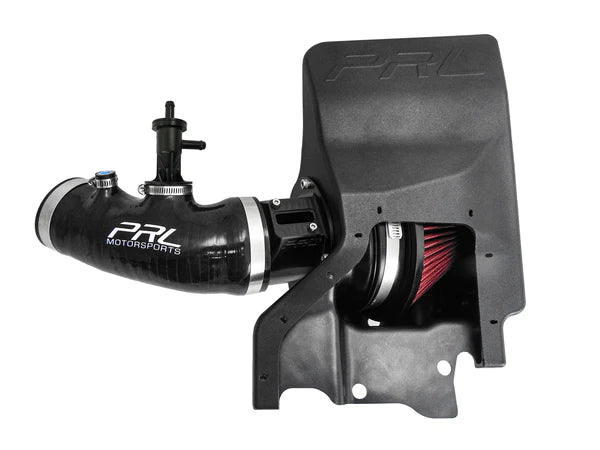

Our FK8 Civic Type-R High Volume Intake system utilizes a 6" cone filter and billet 2-piece MAF housing with velocity stack(s) to allow maximum airflow while delivering proper fuel trims. The HDPE rotomolded air box utilizes the factory air duct and seal for optimal airflow and heat-soak reduction. Custom molded 4-ply silicone allows for all components to be safely attached without obstructing airflow.

The Big Bore MAF housing option is the largest MAF housing on the market, rated at 600+ horsepower, and offers a 47% increase in airflow volume over the factory MAF housing or Standard Bore HVI MAF. Our engineers were able to profile the volute and locate the MAF sensor flange in the optimal location to help keep fuel trims extremely stable. This will require a calibration/MAF scaling and is more-so intended for customers looking to make over 450 horsepower.

Off-Road Use Policy

By purchasing this product, you are acknowledging the use of this service is explicity for Competition/Off - Road Racing ONLY. It is the responsbility of the buyer to remain compliant with local, state & federal laws regarding EPA restrictions.
