PRL Port Injection Kit 2016+ Honda Civic 1.5T / 2018+ Honda Accord 1.5T / 2023+ Acura Integra 1.5T

Name: PRL Port Injection Kit 2016+ Honda Civic 1.5T / 2018+ Honda Accord 1.5T / 2023+ Acura Integra 1.5T
Brand: PRL
SKU: PRL-HC10-PIK
Price: 259.99 USD
Availability: InStock

$259.99 USD

Sale Sold out

{"id":8255933055265,"title":"PRL Port Injection Kit 2016+ Honda Civic 1.5T \/ 2018+ Honda Accord 1.5T \/ 2023+ Acura Integra 1.5T","handle":"prl-port-injection-kit-2016-honda-civic-1-5t-2018-honda-accord-1-5t-2023-acura-integra-1-5t","description":"\u003cp\u003e\u003cstrong\u003eVehicle Fitment\u003c\/strong\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: left;\"\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan face=\"Tahoma\"\u003eFits all 2016+ Honda Civic 1.5T\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"Tahoma\"\u003eFits all 2017-2022 Honda CR-V\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"Tahoma\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eFits all 2018+ Honda Accord 1.5T\u003c\/span\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"Tahoma\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eFits all 2023+ Acura Integra 1.5T\u003c\/span\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003eFits all variant models including Si, 6MT, RHD, International Models, Etc.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: left;\"\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003eTechnical Notes:\u003c\/h3\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: left;\"\u003eOur port injection kit for the 1.5L Turbo L15B Honda Accord \/ Civic \/ CR-V \u0026amp; More permits the use of port injectors for additional fueling on high-powered engines by installing between the intake manifold and cylinder head. The port injectors are placed at a specific angle for proper fuel atomization. Please note that this does\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eNOT\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003ereplace the factory direct injection system.\u003cbr\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: left;\"\u003e\n\u003cul\u003e\n\u003cli\u003eUsers are responsible for sourcing an injector controller, wiring, fittings, fuel hose, etc.\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"arial, helvetica, sans-serif\" size=\"2\"\u003eDesigned for use with Radium Engineering Fuel Damper (or similar)\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003eDue to the thickness of the Port Injection Kit intake manifold adapter plate, a custom or additional coupler hose is needed to connect the charge pipe to the throttle body. We are currently working on a solution for this as well. \u003c\/li\u003e\n\u003cli\u003eDesigned around industry standard Bosch EV14 style injectors (48mm Height), which is commonly used by brands like Injector Dynamics, Deatschwerks, Fuel Injector Clinic, Fuel Injector Development, etc.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003eKit Includes:\u003c\/h3\u003e\n\u003cul\u003e\n\u003cli\u003eAnodized billet 6061 intake manifold adapter plate w\/ injector ports\u003c\/li\u003e\n\u003cli\u003eAnodized billet 6061 fuel rail w\/ (3) ports machined for -8AN ORB female threads \u0026amp; (1) port for 1\/8\" NPT female threads\u003c\/li\u003e\n\u003cli\u003eAnodized stand-offs\u003c\/li\u003e\n\u003cli\u003eAll stainless hardware required for install\u003c\/li\u003e\n\u003cli\u003e1\/8\" NPT sealed pipe plug\u003c\/li\u003e\n\u003cli\u003e(Optional injectors)\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2023-05-11T12:22:18-05:00","created_at":"2023-05-11T12:22:18-05:00","vendor":"PRL","type":"Port Injection Kit","tags":["10th Gen Civic Si","2022+ Honda Civic","2023+ Acura Integra 1.5T","Honda Accord"],"price":25999,"price_min":25999,"price_max":25999,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45112280416545,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"PRL-HC10-PIK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PRL Port Injection Kit 2016+ Honda Civic 1.5T \/ 2018+ Honda Accord 1.5T \/ 2023+ Acura Integra 1.5T","public_title":null,"options":["Default Title"],"price":25999,"weight":11340,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/PRL2016-2021PortInjectionKit.webp?v=1683825740","\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/PRL2016-2021PortInjectionKit2.webp?v=1683825740","\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/PRL2016-2021PortInjectionKit3.webp?v=1683825740"],"featured_image":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/PRL2016-2021PortInjectionKit.webp?v=1683825740","options":["Title"],"media":[{"alt":null,"id":33753648267553,"position":1,"preview_image":{"aspect_ratio":1.858,"height":323,"width":600,"src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/PRL2016-2021PortInjectionKit.webp?v=1683825740"},"aspect_ratio":1.858,"height":323,"media_type":"image","src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/PRL2016-2021PortInjectionKit.webp?v=1683825740","width":600},{"alt":null,"id":33753648300321,"position":2,"preview_image":{"aspect_ratio":1.538,"height":390,"width":600,"src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/PRL2016-2021PortInjectionKit2.webp?v=1683825740"},"aspect_ratio":1.538,"height":390,"media_type":"image","src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/PRL2016-2021PortInjectionKit2.webp?v=1683825740","width":600},{"alt":null,"id":33753648333089,"position":3,"preview_image":{"aspect_ratio":1.511,"height":397,"width":600,"src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/PRL2016-2021PortInjectionKit3.webp?v=1683825740"},"aspect_ratio":1.511,"height":397,"media_type":"image","src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/PRL2016-2021PortInjectionKit3.webp?v=1683825740","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cstrong\u003eVehicle Fitment\u003c\/strong\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: left;\"\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan face=\"Tahoma\"\u003eFits all 2016+ Honda Civic 1.5T\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"Tahoma\"\u003eFits all 2017-2022 Honda CR-V\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"Tahoma\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eFits all 2018+ Honda Accord 1.5T\u003c\/span\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"Tahoma\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eFits all 2023+ Acura Integra 1.5T\u003c\/span\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003eFits all variant models including Si, 6MT, RHD, International Models, Etc.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: left;\"\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003eTechnical Notes:\u003c\/h3\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: left;\"\u003eOur port injection kit for the 1.5L Turbo L15B Honda Accord \/ Civic \/ CR-V \u0026amp; More permits the use of port injectors for additional fueling on high-powered engines by installing between the intake manifold and cylinder head. The port injectors are placed at a specific angle for proper fuel atomization. Please note that this does\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eNOT\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003ereplace the factory direct injection system.\u003cbr\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: left;\"\u003e\n\u003cul\u003e\n\u003cli\u003eUsers are responsible for sourcing an injector controller, wiring, fittings, fuel hose, etc.\u003c\/li\u003e\n\u003cli\u003e\u003cspan face=\"arial, helvetica, sans-serif\" size=\"2\"\u003eDesigned for use with Radium Engineering Fuel Damper (or similar)\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003eDue to the thickness of the Port Injection Kit intake manifold adapter plate, a custom or additional coupler hose is needed to connect the charge pipe to the throttle body. We are currently working on a solution for this as well. \u003c\/li\u003e\n\u003cli\u003eDesigned around industry standard Bosch EV14 style injectors (48mm Height), which is commonly used by brands like Injector Dynamics, Deatschwerks, Fuel Injector Clinic, Fuel Injector Development, etc.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003eKit Includes:\u003c\/h3\u003e\n\u003cul\u003e\n\u003cli\u003eAnodized billet 6061 intake manifold adapter plate w\/ injector ports\u003c\/li\u003e\n\u003cli\u003eAnodized billet 6061 fuel rail w\/ (3) ports machined for -8AN ORB female threads \u0026amp; (1) port for 1\/8\" NPT female threads\u003c\/li\u003e\n\u003cli\u003eAnodized stand-offs\u003c\/li\u003e\n\u003cli\u003eAll stainless hardware required for install\u003c\/li\u003e\n\u003cli\u003e1\/8\" NPT sealed pipe plug\u003c\/li\u003e\n\u003cli\u003e(Optional injectors)\u003c\/li\u003e\n\u003c\/ul\u003e"}

Product variants

Quantity

Vehicle Fitment

Fits all 2016+ Honda Civic 1.5T
Fits all 2017-2022 Honda CR-V
Fits all 2018+ Honda Accord 1.5T
Fits all 2023+ Acura Integra 1.5T
Fits all variant models including Si, 6MT, RHD, International Models, Etc.

Technical Notes:

Our port injection kit for the 1.5L Turbo L15B Honda Accord / Civic / CR-V & More permits the use of port injectors for additional fueling on high-powered engines by installing between the intake manifold and cylinder head. The port injectors are placed at a specific angle for proper fuel atomization. Please note that this does NOT replace the factory direct injection system.

Users are responsible for sourcing an injector controller, wiring, fittings, fuel hose, etc.
Designed for use with Radium Engineering Fuel Damper (or similar)
Due to the thickness of the Port Injection Kit intake manifold adapter plate, a custom or additional coupler hose is needed to connect the charge pipe to the throttle body. We are currently working on a solution for this as well.
Designed around industry standard Bosch EV14 style injectors (48mm Height), which is commonly used by brands like Injector Dynamics, Deatschwerks, Fuel Injector Clinic, Fuel Injector Development, etc.

Kit Includes:

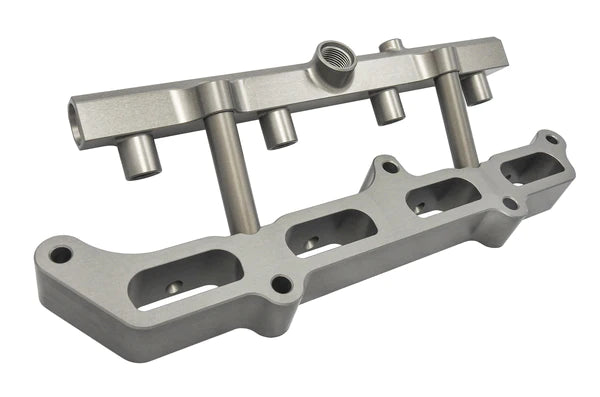

Anodized billet 6061 intake manifold adapter plate w/ injector ports
Anodized billet 6061 fuel rail w/ (3) ports machined for -8AN ORB female threads & (1) port for 1/8" NPT female threads
Anodized stand-offs
All stainless hardware required for install
1/8" NPT sealed pipe plug
(Optional injectors)

Off-Road Use Policy

By purchasing this product, you are acknowledging the use of this service is explicity for Competition/Off - Road Racing ONLY. It is the responsbility of the buyer to remain compliant with local, state & federal laws regarding EPA restrictions.

View full details
