Radium Engineering Fuel Rail Nissan Rb20Det

Name: Radium Engineering Fuel Rail Nissan Rb20Det
Brand: Radium Engineering
SKU: 20-0757
Price: 189.95 USD
Availability: InStock

$189.95 USD

Sale Sold out

{"id":8946713952545,"title":"Radium Engineering Fuel Rail Nissan Rb20Det","handle":"radium-engineering-fuel-rail-nissan-rb20det","description":"\u003cp id=\"products_description\" data-mce-fragment=\"1\"\u003eThis fuel rail features three 8AN ORB ports, two located at the ends and one in the middle. It also features one 1\/8 NPT port.\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003eAppropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003eThis Nissan RB20DET fuel rail is manufactured with a large 0.69\" internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from a custom 6063 aluminum extrusion and black anodized and laser etched for a high quality surface finish. It incorporates many lightweight features to go with the strong integrated gusset mounts, shown below.\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003eThe fuel rail is designed for any aftermarket injectors that have the same fitment as the OEM injectors. Contact an injector manufacturer to see what they offer. The upper injector bores are machined with a common 11mm ID (Denso). Use the included O-rings if re-using the OEM injectors (shown above), otherwise the included O-rings will not be needed. As shown below, the front, rear, and center ports use 8AN ORB (3\/4\"-16 O-ring threads) to accept many adapter fittings for custom high flow fuel system builds.\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eIncludes:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003eBlack Anodized Aluminum Fuel Rail\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eStainless Steel Mounting Bolts (x2)\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eFKM O-rings for OEM Injectors (x6)\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cstrong data-mce-fragment=\"1\"\u003eFitment:\u003c\/strong\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003eNissan Rb20Det\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cstrong data-mce-fragment=\"1\"\u003eNotes:\u003c\/strong\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003eThis fuel rail does NOT come standard with fittings.\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eIf the OEM fuel pressure regulator will be reused.\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eThe rail is compatible with all fuel types including popular alcohol mixtures such as E85.\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2024-01-22T20:59:58-06:00","created_at":"2024-01-22T20:59:58-06:00","vendor":"Radium Engineering","type":"Fuel Rail","tags":["Nissan RB","Nissan Skyline","Nissan Skyline R32","Nissan Skyline R33","Nissan Skyline R34"],"price":18995,"price_min":18995,"price_max":18995,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":47900030632225,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"20-0757","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Radium Engineering Fuel Rail Nissan Rb20Det","public_title":null,"options":["Default Title"],"price":18995,"weight":6804,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/RB20DETFuelRail.png?v=1705978800"],"featured_image":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/RB20DETFuelRail.png?v=1705978800","options":["Title"],"media":[{"alt":null,"id":36547166273825,"position":1,"preview_image":{"aspect_ratio":1.413,"height":1098,"width":1552,"src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/RB20DETFuelRail.png?v=1705978800"},"aspect_ratio":1.413,"height":1098,"media_type":"image","src":"\/\/outsiderperformanceusa.com\/cdn\/shop\/files\/RB20DETFuelRail.png?v=1705978800","width":1552}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp id=\"products_description\" data-mce-fragment=\"1\"\u003eThis fuel rail features three 8AN ORB ports, two located at the ends and one in the middle. It also features one 1\/8 NPT port.\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003eAppropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003eThis Nissan RB20DET fuel rail is manufactured with a large 0.69\" internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from a custom 6063 aluminum extrusion and black anodized and laser etched for a high quality surface finish. It incorporates many lightweight features to go with the strong integrated gusset mounts, shown below.\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003eThe fuel rail is designed for any aftermarket injectors that have the same fitment as the OEM injectors. Contact an injector manufacturer to see what they offer. The upper injector bores are machined with a common 11mm ID (Denso). Use the included O-rings if re-using the OEM injectors (shown above), otherwise the included O-rings will not be needed. As shown below, the front, rear, and center ports use 8AN ORB (3\/4\"-16 O-ring threads) to accept many adapter fittings for custom high flow fuel system builds.\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eIncludes:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003eBlack Anodized Aluminum Fuel Rail\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eStainless Steel Mounting Bolts (x2)\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eFKM O-rings for OEM Injectors (x6)\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cstrong data-mce-fragment=\"1\"\u003eFitment:\u003c\/strong\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003eNissan Rb20Det\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cstrong data-mce-fragment=\"1\"\u003eNotes:\u003c\/strong\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003eThis fuel rail does NOT come standard with fittings.\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eIf the OEM fuel pressure regulator will be reused.\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eThe rail is compatible with all fuel types including popular alcohol mixtures such as E85.\u003c\/li\u003e\n\u003c\/ul\u003e"}

Product variants

Quantity

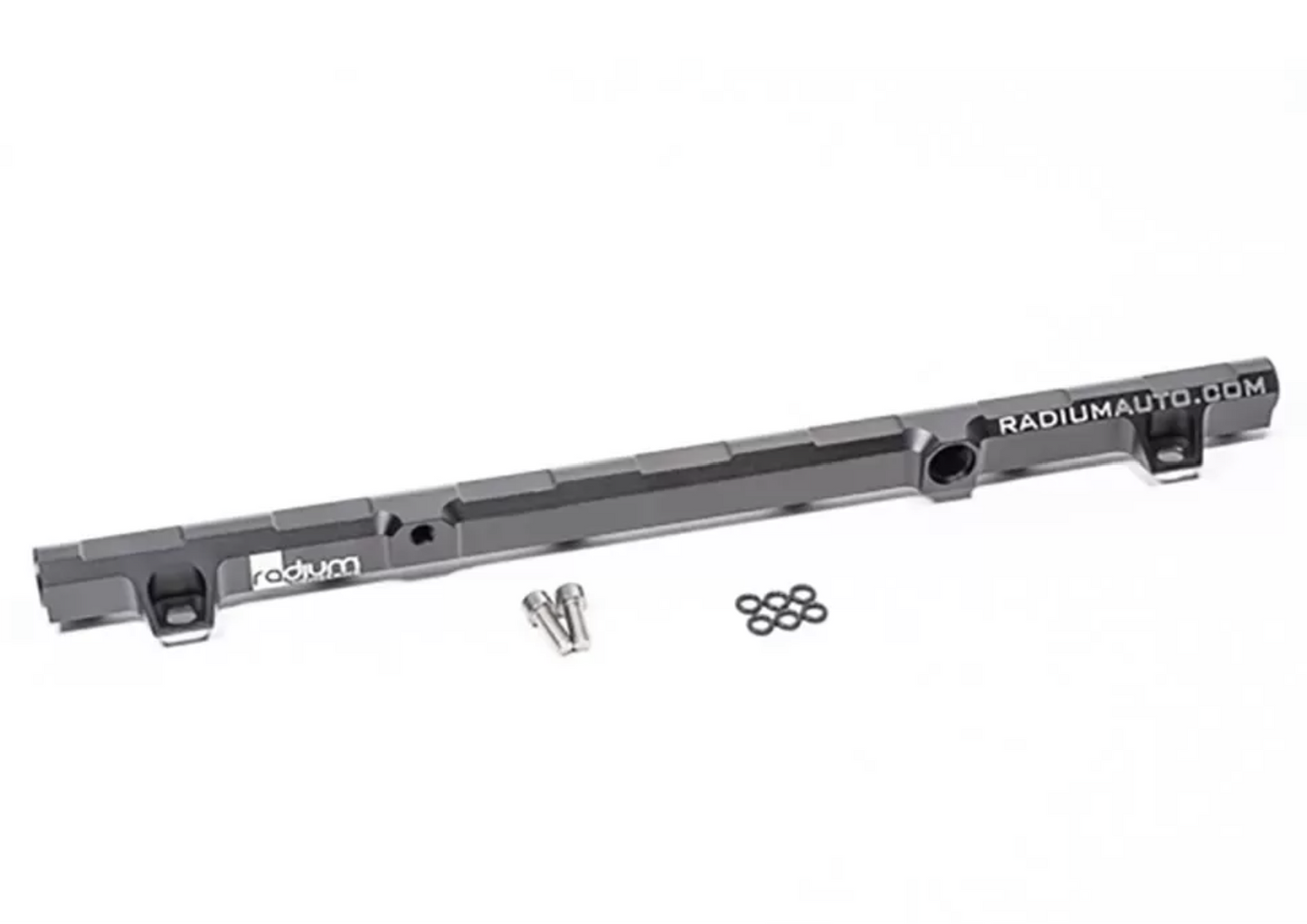

This fuel rail features three 8AN ORB ports, two located at the ends and one in the middle. It also features one 1/8 NPT port.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

This Nissan RB20DET fuel rail is manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from a custom 6063 aluminum extrusion and black anodized and laser etched for a high quality surface finish. It incorporates many lightweight features to go with the strong integrated gusset mounts, shown below.

The fuel rail is designed for any aftermarket injectors that have the same fitment as the OEM injectors. Contact an injector manufacturer to see what they offer. The upper injector bores are machined with a common 11mm ID (Denso). Use the included O-rings if re-using the OEM injectors (shown above), otherwise the included O-rings will not be needed. As shown below, the front, rear, and center ports use 8AN ORB (3/4"-16 O-ring threads) to accept many adapter fittings for custom high flow fuel system builds.

Includes:

Black Anodized Aluminum Fuel Rail
Stainless Steel Mounting Bolts (x2)
FKM O-rings for OEM Injectors (x6)

Fitment:

Nissan Rb20Det

Notes:

This fuel rail does NOT come standard with fittings.
If the OEM fuel pressure regulator will be reused.
The rail is compatible with all fuel types including popular alcohol mixtures such as E85.
