Tomioka Racing

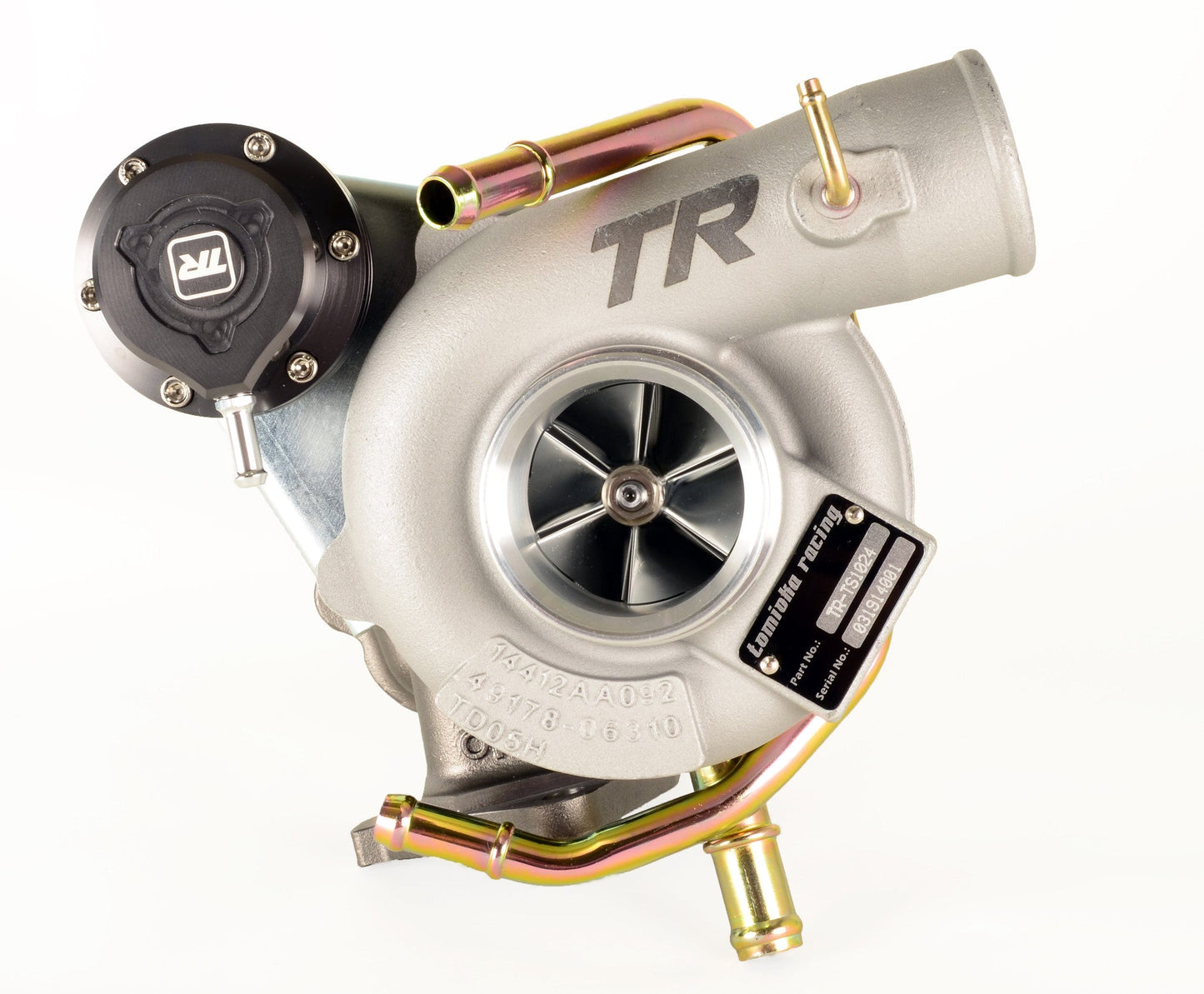

Tomioka Racing TD05-16G Billet Wheel Turbo Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator

Tomioka Racing TD05-16G Billet Wheel Turbo Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator

Regular price $1,190.00 USD
Regular price Sale price $1,190.00 USD
Sale Sold out

One of the most popular TD05-16G replacement turbocharger now comes in billet compressor wheel. Supersize your mild upgrade from the factory VF turbo. The billet compressor wheel improves air flow by at least 10% over TD05-16G in standard compressor wheel which results in higher horse power capacity. The turbo comes with all fitting and gaskets, ready to bolt on out of the box. The best all around turbo upgrade just got better!

TURBO CHARACTERISTICS:

Type:

TD05-16G

Bearing:

Journal

Flange:

Standard Subaru 5 Bolt

Compressor Diameter:

Inlet = 48.3 mm | Outlet = 68 mm

Turbine Diameter:

Inlet = 56 mm | Outlet = 49.2 mm

Turbo Boost:

1.3 bar / 19 PSI

Maximum Power:

400 HP

APPLICATIONS

  • 2002-2007 Subaru WRX
  • 2004-2021 Subaru STI

KIT CONTENTS:

  • Turbocharger
  • Actuator
  • Oil Pipe
  • Water Pipe
  • Gaskets



Off-Road Use Policy

By purchasing this product, you are acknowledging the use of this service is explicity for Competition/Off - Road Racing ONLY. It is the responsbility of the buyer to remain compliant with local, state & federal laws regarding EPA restrictions.
